PortaBell Wall-Mounted Unit
A more permanent and flexible installation option for studios and production spaces.
Same PortaBell system — now designed for wall installation.
Built for studios, stages, and facilities where a clean, fixed setup is preferred without sacrificing portability.
🔴 PortaBell Wall-Mounted Unit
$25 / day
Includes:
- 1 Wall-Mounted PortaBell Unit (light + bell)
- 2 Wireless Transmitters
- Magnetic door warning sign (“Do Not Enter When Red Light Is On”)
- Chargers and cables
- Travel case
Designed for quick setup and reliable performance in permanent or semi-permanent environments.
⚫ Additional Wall Units
$20 / day (each)
Includes:
- 1 Wall-Mounted PortaBell Unit (light + bell)
- Magnetic door warning sign
- Chargers and cables
- Travel case
Add units to expand coverage and improve signal strength across larger areas.
🔧 Installation
Wall-mounted PortaBell units are designed for fast and simple installation:
- Mounts like a picture frame using two screws
- The rear sawtooth bracket allows quick hanging and repositioning
- Built-in magnets allow units to attach directly to steel surfaces
No special tools or permanent installation required.
🔁 System Setup
PortaBell operates as a wireless mesh network.
Each additional unit strengthens signal reliability and allows communication across larger stages, studios, and multi-room environments.
⚠️ Minimum Rental Requirement
A minimum of two PortaBell units is required for proper system performance.
Single-unit rentals are not available.
💬 Typical Use
- Film studios and sound stages
- Multi-room production environments
- Facility installations
- Entry/exit points and controlled access areas
Wall-mounted units provide a clean, consistent installation while maintaining full PortaBell functionality.
📞 Availability
Wall-mounted PortaBell units are currently undergoing electrical certification.
Please contact us for availability — depending on timing, we may be able to accommodate your production.

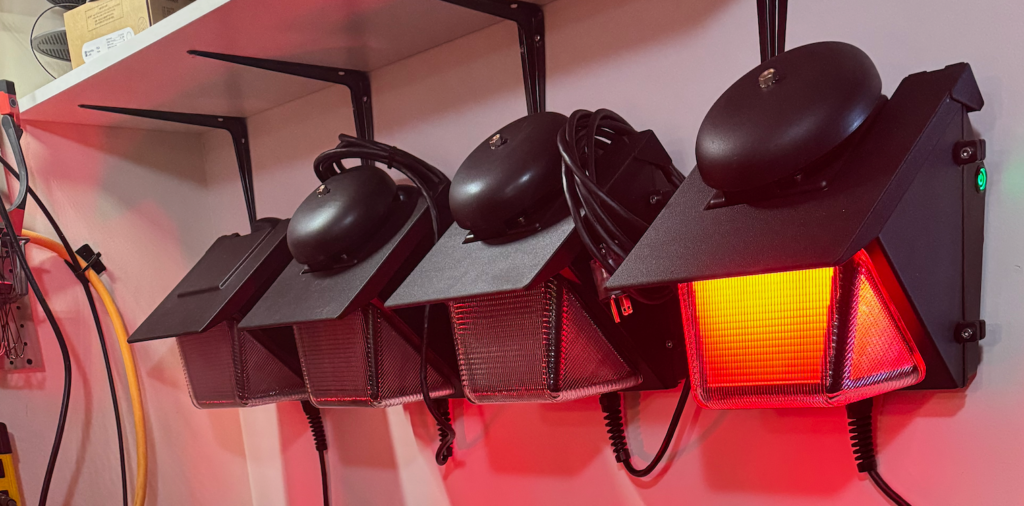

See Wall PortaBell in Action

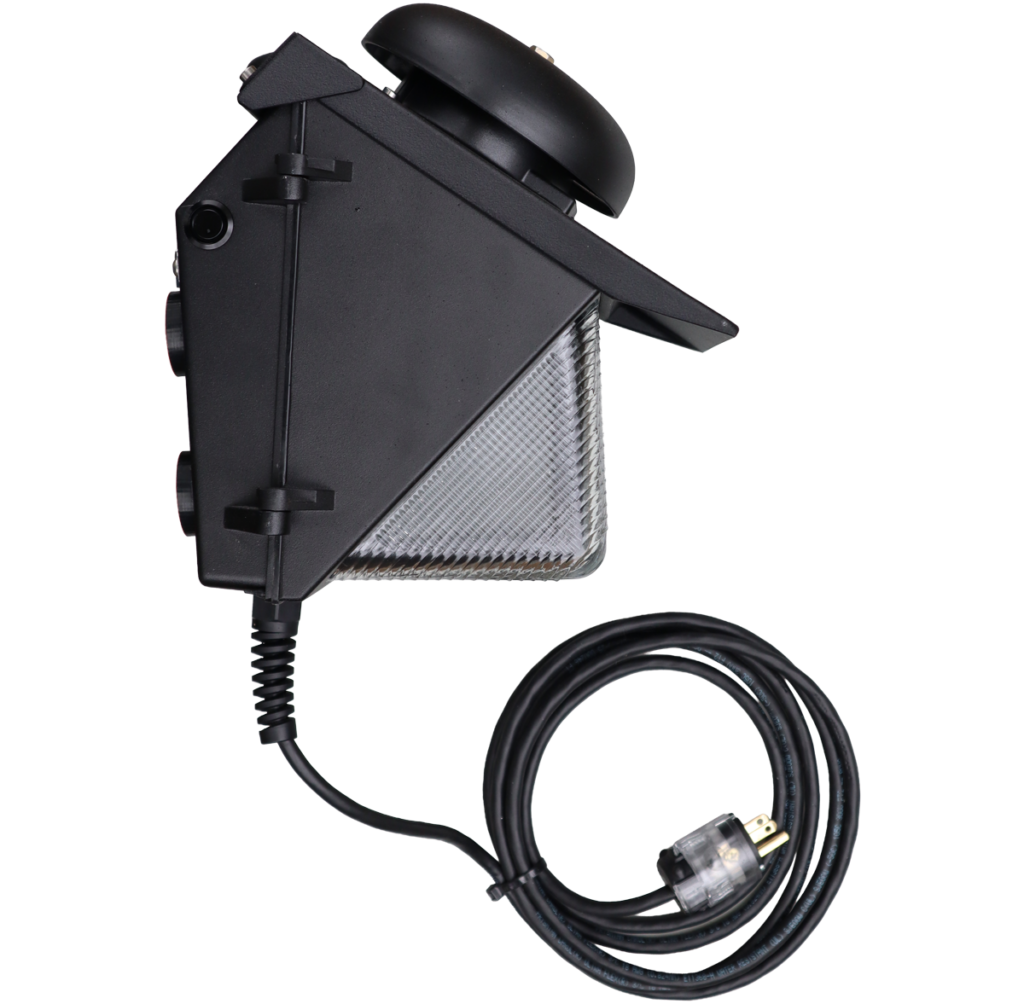

Side View / Bell Isolation Switch
This side view shows the PortaBell wall-mounted unit, including the bell isolation switch. This latching push-button switch allows this individual unit’s bell to be disabled when needed, while the rest of the PortaBell system continues to operate normally. When a rolling or cut command with bell is sent, the other PortaBell units can still ring, while this selected unit remains silent and continues to provide the visual warning light signal.

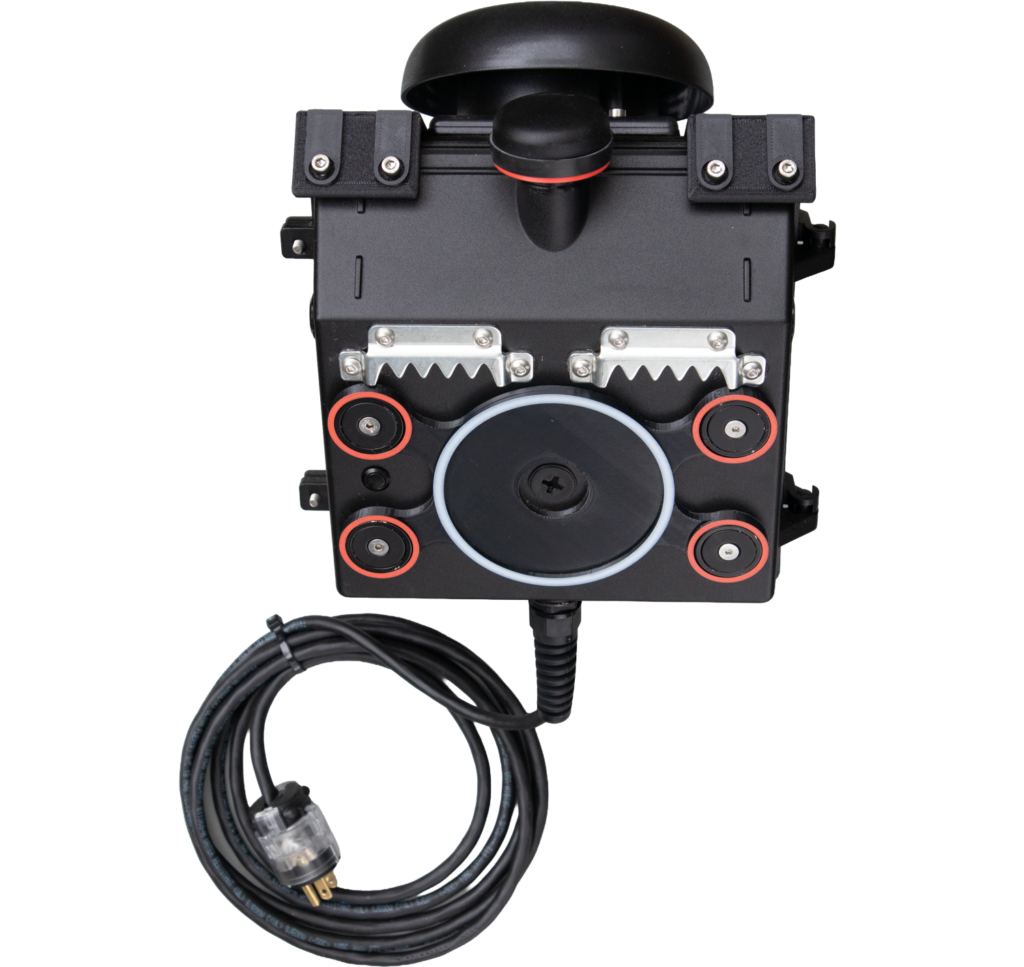

Back View / Mounting Side
This view shows the back side of the PortaBell wall-mounted unit, including the bell, antenna, sawtooth hanging brackets, magnetic mounting points, permanent mounting point, and power cord. The magnetic mounting points allow the unit to attach to suitable metal surfaces, while the centre mounting area can be used for a more permanent wall installation.

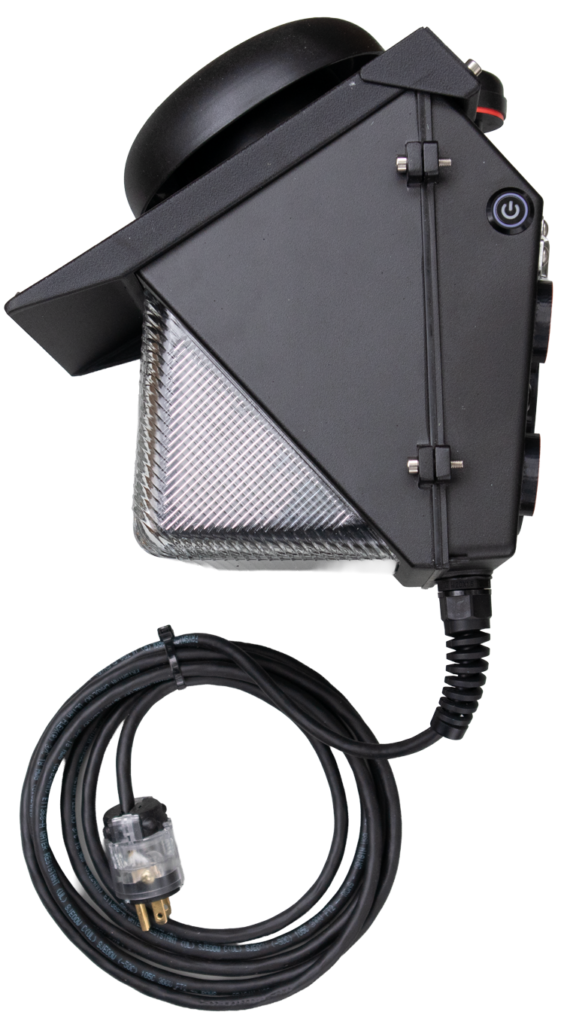

Left Side / Main Power Switch
This left-side view shows the PortaBell wall-mounted unit with the main power switch. When the switch is pressed, the green indicator light turns on to indicate that the unit is powered. When the switch is out, the green indicator light turns off and the unit is powered down.

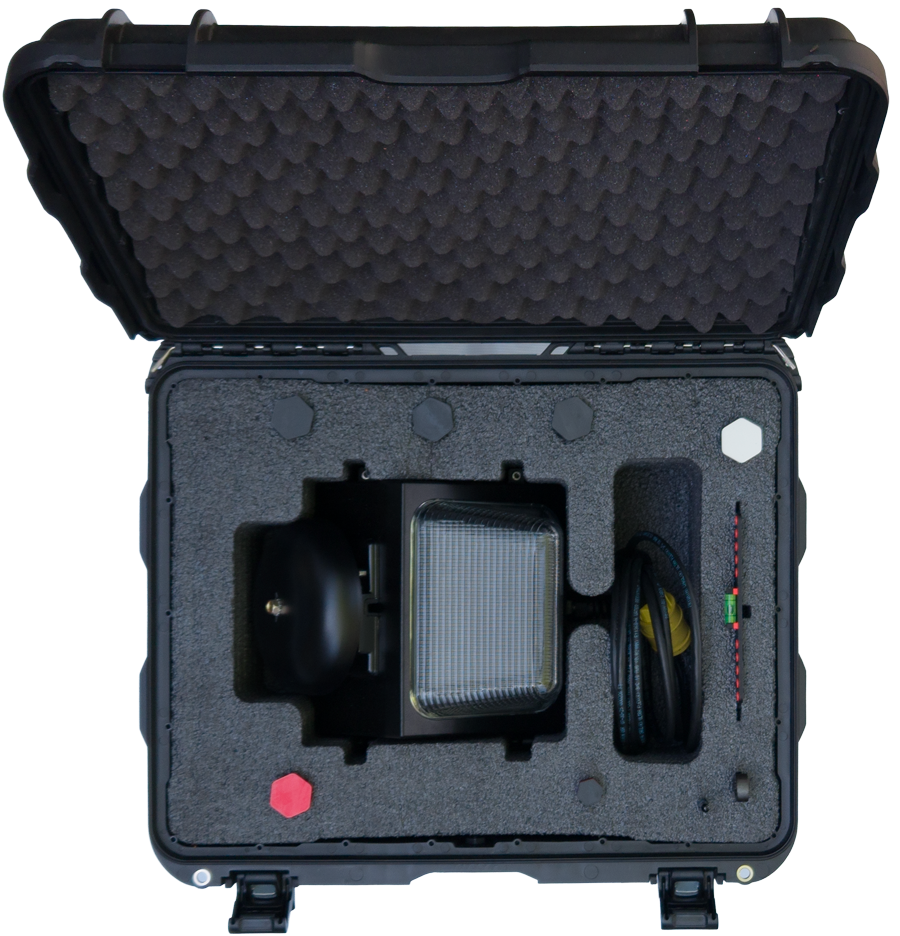

Protective Case & Installation Accessories
The PortaBell wall-mounted unit is supplied in a protective foam-lined case designed to keep the unit and mounting accessories organized during shipping, storage, and transport.
The PortaBell wall-mounted unit is supplied in a protective foam-lined case designed to keep the unit and mounting accessories organized during shipping, storage, and transport.
Inside the case are the basic components needed for installation, including mounting hardware, alignment tools, and service tools for attaching or adjusting the unit.
The accessory tubes hold the appropriate screws, universal wall anchors, and mounting inserts for common installation surfaces such as drywall, concrete, and wood. A matching drill bit is also included to help prepare the mounting holes.
A supplied alignment level helps position the mounting screws correctly so they line up with the wall-mount hanging brackets on the back of the PortaBell wall unit.
The case also includes the required wrench and Allen key used for installing and tightening the removable sun visor.
